JRI MySirius Wireless Temperature Monitoring Solution
JRI MySirius is a wireless monitoring solution with IoT connectivity. The cloud-based temperature monitoring solution is adapted to a wide range of applications :
- Monitoring of storage areas : warehouses, cold rooms, thermostatic or climatic chambers, fridges, freezers, incubators…
- Monitoring during transport : vehicles, containers, isothermal bags…
JRI MySirius is compatible with the Nano SPY wireless data loggers that are perfectly fit to meet the needs of basic temperature and humidity monitoring of storage areas and during transport.
The LoRa® SPY range of wireless sensors equipped with LoRaWAN long-range technology ensures tracking temperature, humidity and other environmental parameters and allows to monitor storage areas scattered over a large territory and perform real-time monitoring during transport.

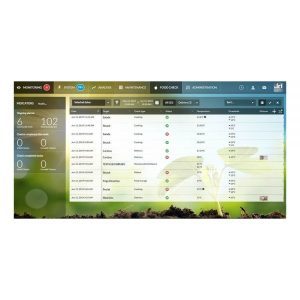

Both types of data loggers and sensors can be managed via any type of terminal : PC, tablet or smartphone. JRI MySirius can be integrated with a third-party systems via API.

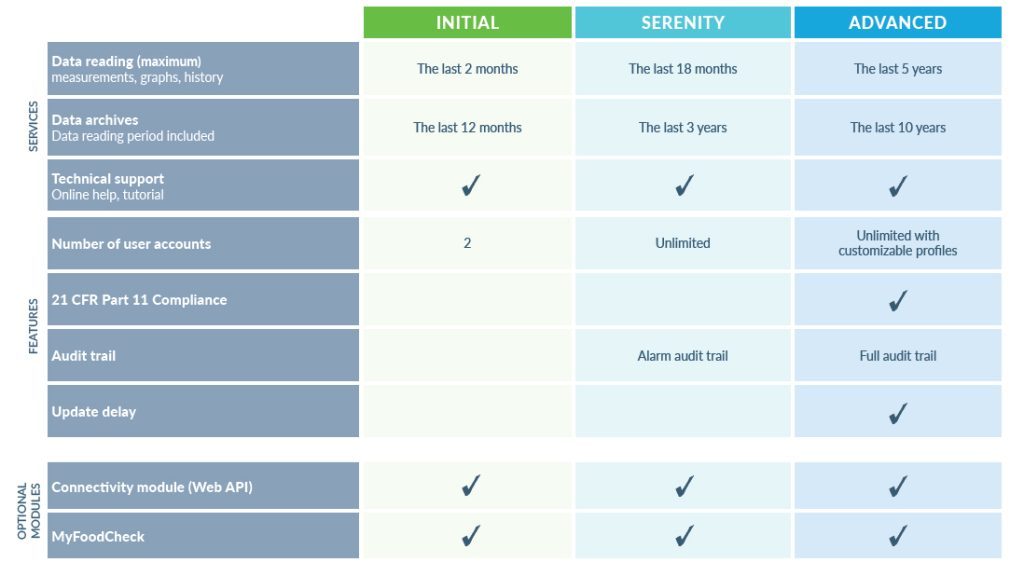

MySirius Subscription Plans
MyFoodCheck

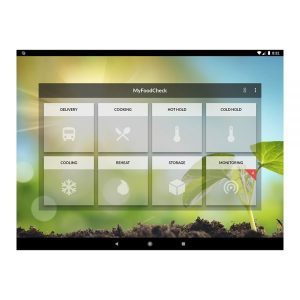

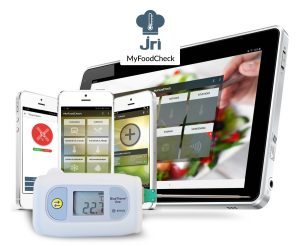

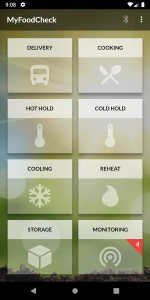

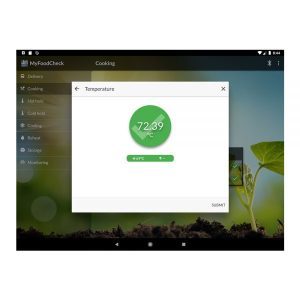

MyFoodCheck is a mobile and tablet app that simplifies HACCP temperature measurement operations by using the Bluetherm One connected thermometer. Measurement data is transmitted by the Bluetherm One through the MyFoodCheck app making recording paperless and also enabling quick decisions to be made if thresholds are exceeded.
It enables easy management of temperature recording of foodstuffs from reception to the plate. At every stage recording is made easy:
- At delivery
- At hot/cold holding
- At cooling and reheating
- At storage
- At cooking
In the case of non-compliant temperatures, a list of corrective actions is displayed and the information added automatically via the MyFoodCheck app to MySirius.

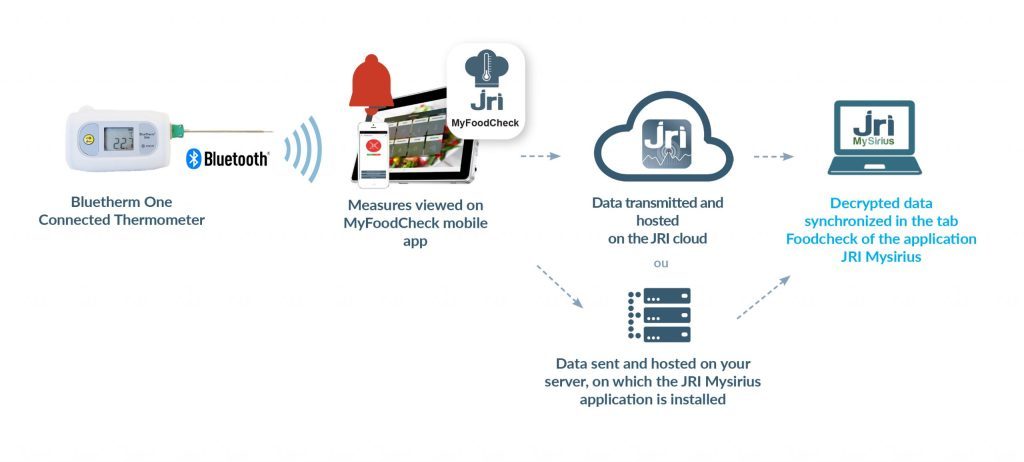

MyFoodCheck operates in tandem with the FOODCHECK module with MySirius 24/7 monitoring cloud solution. All data is collected in the MyFoodCheck application and is automatically synchronized and saved on the JRI MySirius Platform within the FOODCHECK module. Temperature recordings with a conventional thermometer, can be easily entered manually into the application. The FOODCHECK module provides access to the administration and configuration of alert thresholds, products, corrective actions, monitoring units and suppliers.
It is possible to export data in PDF reports and CVS files and to generate audit trails.
To use MyFoodCheck application, it is necessary to :
- Subscribe to JRI MySirius cloud solution along with the FOODCHECK module
- Download the free Mobile App available from Google Play and soon on iTunes
- Purchase one or more BlueTherm Thermometers
BENEFITS
- Saves time and increases productivity
- Reduces risk your customers
- Creates detailed digital records that will protect you from litigation
- Makes sure you’re Always ready for inspection
- Weekly PDF reports and audit trails
Nano SPY Mini Wireless Data Loggers
Wireless mini Data loggers with 2.4 Ghz technology communication.
The new range of mini temperature data loggers Nano SPY monitor temperature and humidity. The Nano SPYs are 100% wireless sensors and can be placed them directly in the unit or transport box, the closest possible to the thermo-sensible products. The recorded data are transmitted to the module Nano SPY LINK by a 2.4GHz radio frequency communication, uploaded and managed through the secure Web application JRI MySirius from anywhere using a tablet or computer or smartphone.

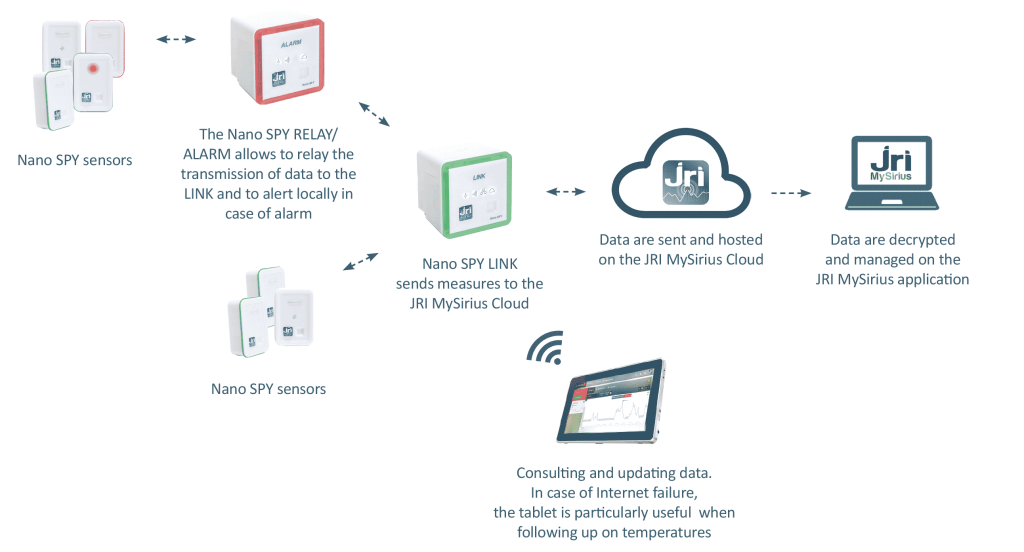

Operating principle with Nano SPY wireless data loggers
Nano SPY T1
Real wireless sensor, the Nano SPY T1 measures and records temperature. It transmits data to a nearby LINK module, by 2.4 GHz radiofrequency communication. The measurements are then sent automatically to the JRI secure Cloud for hosting, and will be managed on JRI MySirius web application. If thresholds are exceeded, alerts are transmitted in real time to react immediately. Small and robust, it is designed to monitor temperature directly from inside the refrigerator, freezer, incubator or room. The calibration can be managed by simple exchange.
Nano SPY T2
The Mini data logger Nano SPY T2 measures and records temperature with its external probe. Designed to monitor thermo-controlled chambers, the Nano SPY T2 mini data logger transmits data to a nearby LINK module. The measurements are then sent automatically to the JRI secure Cloud for hosting and will be managed on JRI MySirius web application. If thresholds are exceeded, alerts are transmitted in real time to react immediately. 3 versions available with different probe lengths. It can be fixed to outside of equipment, thanks to its magnet back.
